Chillers
Standard Chiller
2 – 120 Ton

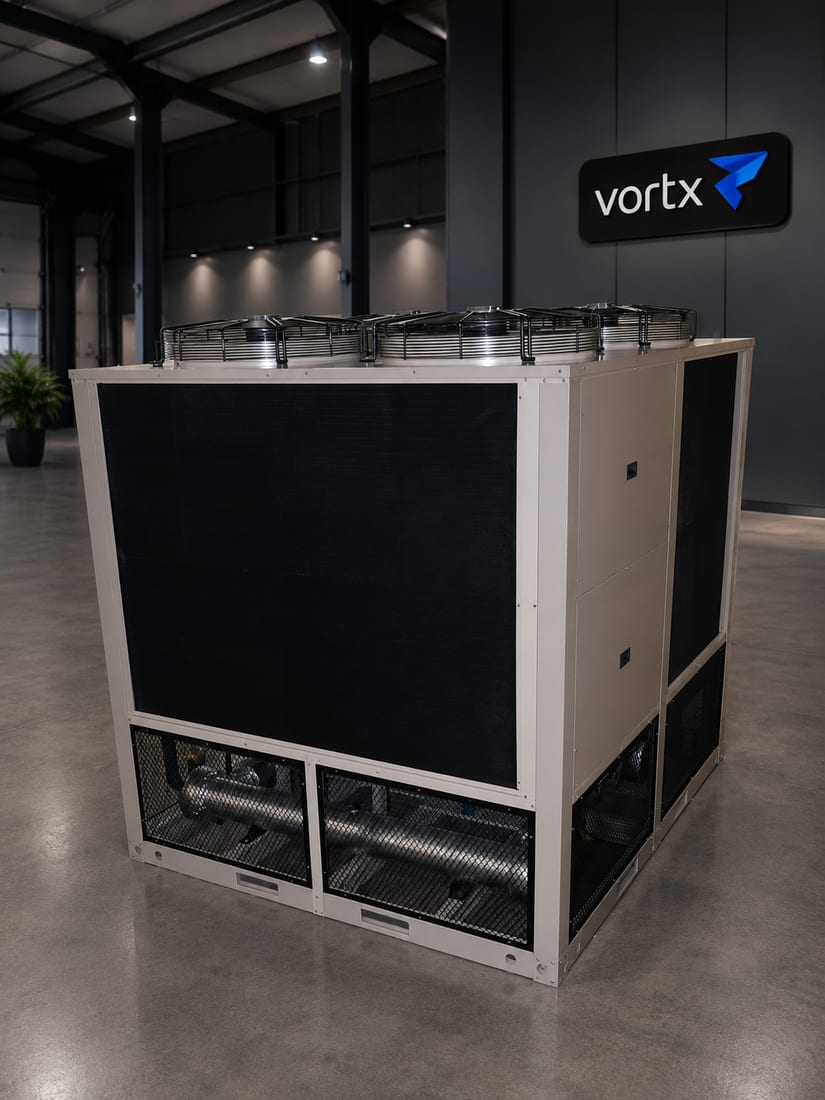

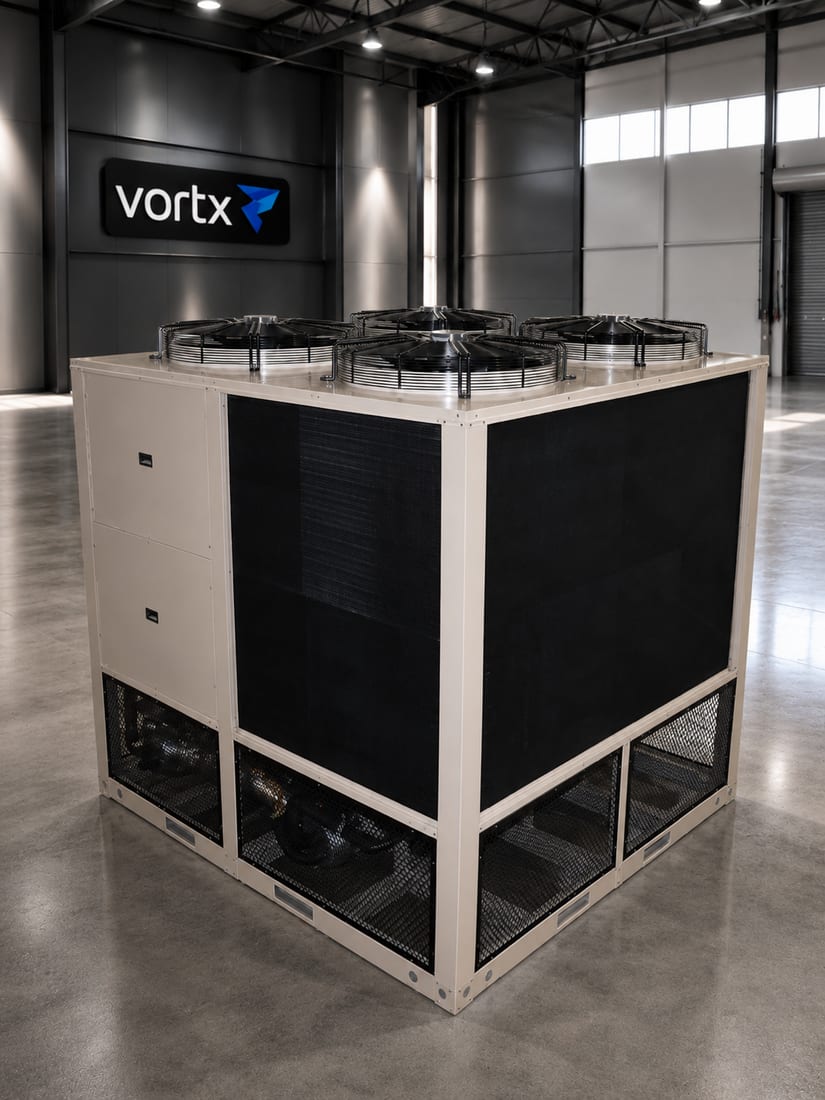

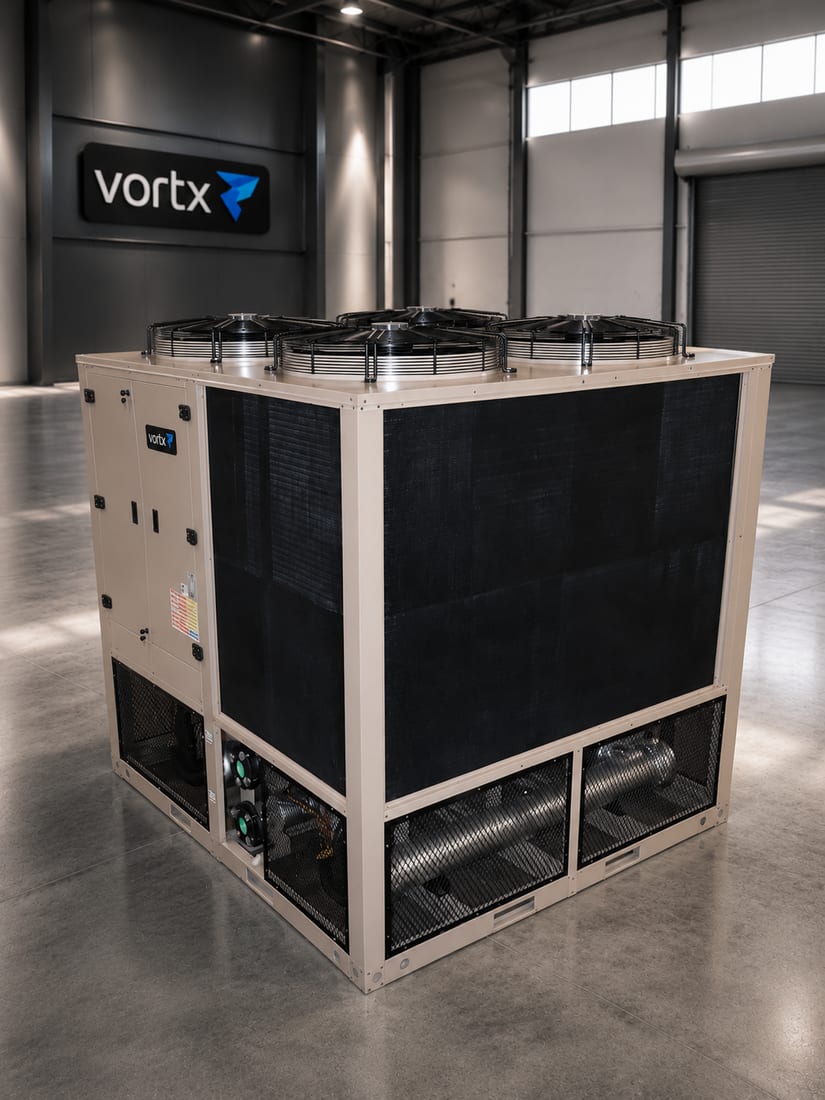

Air-cooled scroll chiller — 2 to 120 tons.
- AHRI
- UL
- ETL
Request a QuoteDatasheet coming soon
Overview
Vortx standard chillers are built around scroll compressors that offer greater protection against liquid damage, run more efficiently across their operating range, and produce lower sound and vibration than traditional compressors. Dual refrigeration circuits, a shell-and-tube evaporator, and a galvanized-steel cabinet make them a dependable fit for commercial and industrial cooling.
Key features
- Dual refrigeration circuits
- Scroll compressors — quiet, efficient operation
- Shell-and-tube evaporator (heat exchanger)
- Filter drier and high/low pressure switches
- Galvanized sheet-metal cabinet
- Motors direct-coupled to axial fans
- Available in R410a or R32
Specifications
AQ Series at a glance.
| Specification | AQ Series |
|---|---|
| Capacity | 2 – 120 Ton |
| Refrigerant | R410a or R32 |
| Compressor | Scroll |
| Circuits | 2 refrigeration circuits |
| Evaporator | Shell-and-tube heat exchanger |
| Coil | Copper tube / aluminum fin — 15 FPI, 3 rows, 50 sq ft |
| Fan Motor | Three-phase · 220V or 460V · 60 Hz · direct-coupled axial |
| Optional | Copper/copper coil with protective coating |
Specifications are representative — refer to the model datasheet for full certified values.
